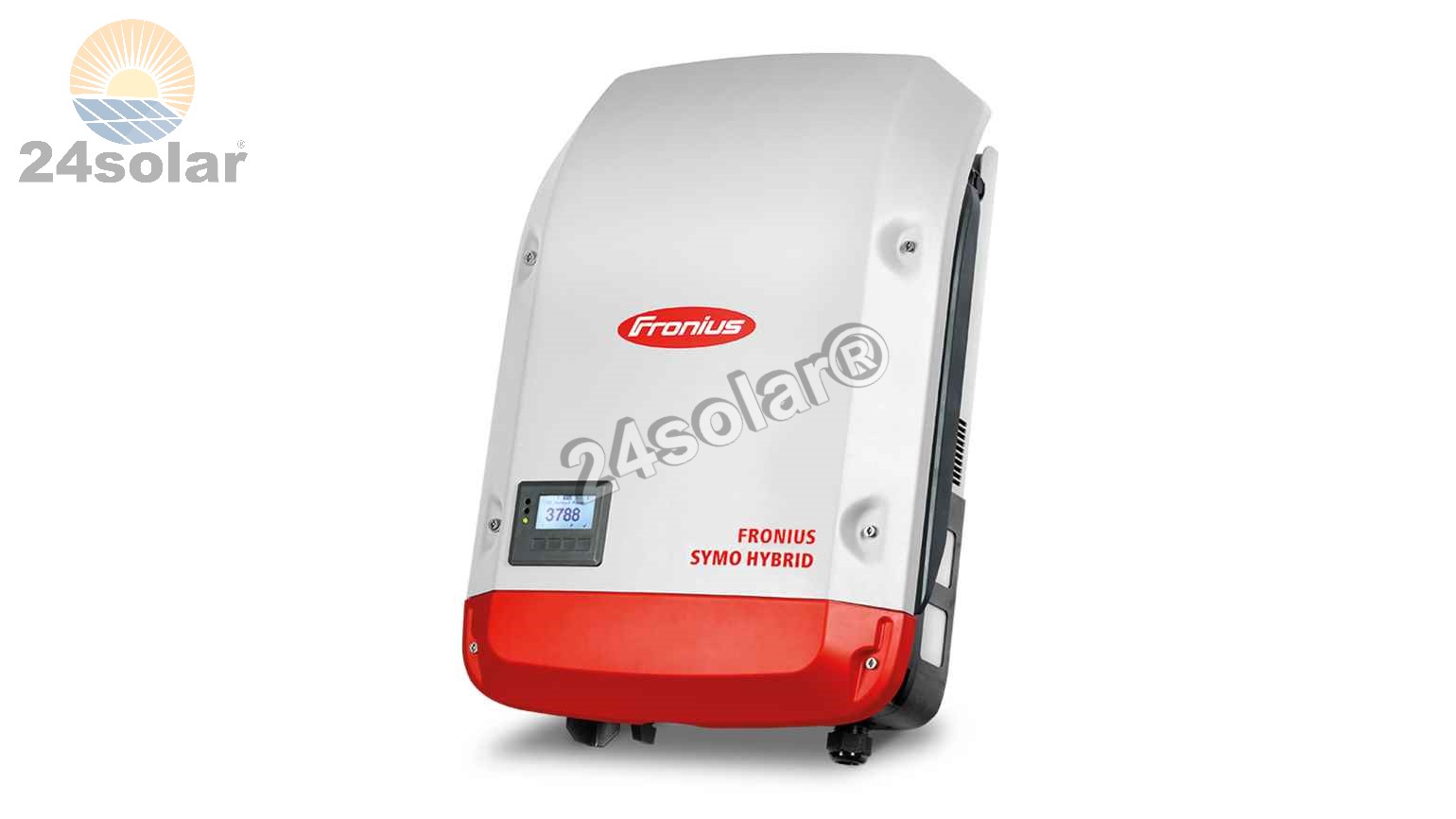

FRONIUS Symo Hybrid 4.0-3-S växelriktare 4 kW
Fronius Symo Hybrid löser problemet med lagringen av solenergi.
- Betala säkert med kort.
- Maila oss, vi svarar snabbt!
- Betala säkert med paypal.
- Snabb och säker Transport .
Beskrivning
Art.nr: 137
Fronius Symo Hybrid löser problemet med lagringen av solenergi med sitt Fronius Energy Package. Denna växelriktare kombinerar ett batteriladdningssystem, en batteriladdare, en hybridväxelriktare, en styrenhet och ett systemövervakningslösning i en enhet. Med växelströmskategorier från 3,0 till 5,0 kW kan omvandlaren hantera upp till 8,0 kW för att förse hushållets konsumenter med energi samt tillfälligt lagra överskottsenergi i Fronius Solar Battery. Tack vare ett intelligent energiförvaltningssystem stöder den inbyggda Multi Flow Technology:n samtidiga energiflöden i alla riktningar samt AC-, DC- och AC- och DC-koppling av batterilagret. Resultatet: maximal självförbrukning och ett system med maximal lönsamhet.
Filer och media
 |
- :Product details Technical Data INPUT DATA Number of MPP trackers 1,0 Max. PV input power 6500,0 W Max. input current (Idc max) 1 x 16 A Max. short circuit current, module array 24,0 A DC input voltage range (Udc min - Udc max) 150 - 1000 V Feed-in start voltage (Udc start) 200,0 V Nominal input voltage (Udc,r) 595,0 V MPP voltage range (Umpp min - Umpp max) 255 - 800 V Usable MPP voltage range 150 - 800 V Number of DC connections 2,0 BATTERY INPUT Maximum output power to battery Dependent on connected Fronius Solar Battery Maximum input power from battery Dependent on connected Fronius Solar Battery OUTPUT DATA AC nominal output (Pac,r) 4000,0 W Max. output power (Pac max) 4000,0 VA Max. grid power demand 4000,0 VA Max. AC output current 8,3 A Grid connection (Uac,r) 3~ NPE 400/230, 3~ NPE 380/220 V AC voltage range (Umin - Umax) 150 - 270 V Frequency (fr) 50 / 60 Hz Frequency range (fmin - fmax) 45 - 65 Hz Total harmonic distortion < 3 % Power factor (cos φac,r) 0,85 - 1 ind./cap. GENERAL DATA Height 645,0 mm Width 431,0 mm Depth 204,0 mm Weight 19,9 kg Degree of protection IP 65 Protection class 1,0 Overvoltage category (DC / AC) 1) 2 / 3 Night-time consumption < 1 W Inverter design Transformerless Cooling Regulated air cooling Installation Indoors and outdoors Ambient temperature range -25°C - +60°C Permitted humidity 0 - 100 % Max. altitude 2) 2.000 m DC PV connection technology 2x DC+ and 2x DC- screw terminals 2.5 - 16 mm² DC battery connection technology 1x DC+ and 1x DC- screw terminals 2.5 - 16 mm² AC connection technology 5-pin AC screw terminals 2.5 - 16 mm² Emergency power compatible Yes Certificates and compliance with standards VDE AR N 4105, ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1 EFFICIENCY Max. efficiency (PV - grid) 97,9 % Max. efficiency (PV - battery - grid) > 90,0 % European efficiency (ηEU) 95,7 % η at 5% Pac,r 3) 80,1 / 79,5 / 70,1 % η at 10% Pac,r 3) 86,2 / 88,1 / 83,2 % η at 20% Pac,r 3) 91,6 / 94,2 / 92,4 % η at 25% Pac,r 3) 93,2 / 95,3 / 94,2 % η at 30% Pac,r 3) 93,9 / 96,2 / 95,1 % η at 50% Pac,r 3) 94,9 / 97,1 / 96,4 % η at 75% Pac,r 3) 95,4 / 97,7 / 97,0 % η at 100% Pac,r 3) 95,6 / 97,9 / 97,3 % MPP adaptation efficiency > 99,9 % PROTECTION DEVICES DC insulation measurement Integrated Overload behaviour Operating point shift, power limitation DC disconnector Integrated Reverse polarity protection Yes Integral RCMU Yes INTERFACES WLAN / Ethernet LAN Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) Datalogger and web server Integrated Interface to battery and meter Modbus RTU (RS485) Technology SnapINverter technology The SnapINverter generation of inverters features a simple, standardised mounting system, making installation and maintenance easier than ever. A special feature in the design of the device is that the connection area is separate from the power stage set compartment, with both being installed separately. The remarkably light connection area and all its cabling is fitted to the wall first, followed by the power stage set. The innovative hinged system makes installation and servicing extremely user-friendly. The inverter is simply placed in the wall bracket and then secured. This means that it is not necessary to remove the entire inverter for servicing, just the power stage set. All the cabling remains in place. Integrated data communication We are the first inverter manufacturer to offer a data communication package with fully integrated datalogging, WLAN, Ethernet, energy management, web server and a range of interfaces. The inverter is connected to the internet by network cable or WLAN - without additional cabling - and grants you the perfect overview of how the PV system is operating. Connection to third-party components is provided by means of interfaces such as Modbus TCP SunSpec, Modbus RTU SunSpec or Fronius Solar API (JSON). The open interfaces can also be operated in parallel to the Fronius Solar.web. Dynamic Peak Manager The Dynamic Peak Manager is a new MPP tracking algorithm that dynamically adapts its behaviour when searching for the optimal operating point. Its special feature is that the Dynamic Peak Manager automatically checks the entire characteristic curve on a regular basis and finds the global Maximum Power Point (GMPP), even in partial shade. Smart Grid Ready Fronius inverters are ready for the Smart Grid of tomorrow. The inverters are optimally equipped to meet the technical requirements of grids in the future. A series of smart functions, known as Advanced Grid Features, are built into the devices. They include a number of control functions for optimum feed-in of reactive power and effective power. These functions are designed to enable stable grid operation even when the PV system density is very high and to prevent unwanted interruptions to feed-in and associated yield losses if grid parameters exceed the thresholds. Fronius inverters therefore help to guarantee the yield of a PV system. Furthermore, where feed-in limits are imposed, Fronius inverters can provide dynamic feed-in control with self-consumption taken into account. Just connect the meter and set the feed-in limit! Multi Flow Technology Using Multi Flow Technology, different DC and AC energy flows are possible in parallel. On the one hand, this allows energy from the modules and from the battery to be made available for domestic use at the same time. However, it is also possible for the energy from the modules to be simultaneously fed into the battery and the in-house network. Furthermore, not only can the battery be charged from the DC side, but also from the AC side (for example from existing PV systems or other energy sources, such as a wind turbine). This means the inverter is also suitable for AC-coupled retrofitting. The inverter manages these energy flows in such a way that the highest possible degree of self-sufficiency is achieved. Zero feed-in Today, an increasing number of grid operators in various countries are stipulating a PV power feed-in limit as a precondition before a system is connected to the grid. With dynamic power reduction, Fronius is offering a solution for optimum feed-in management. The Inverter supplies the household consumers with energy first and then reduces the system Output to the maximum energy feed-in permitted by the grid operator. With Fronius inverters, zero feed-in is also a possibility thanks to this function, meaning that no PV power is fed into the grid. The relevant requirements of the grid operator can be fulfilled by simply enabling a Setting on the inverter's web interface.
